HC13R5/HC14R5/HC15R5/HC16R5/HC17R5 14引腳DIP封裝HCMOS振蕩器Connor-Winfield

發布時間：2025-07-02 09:10:44     瀏覽：71

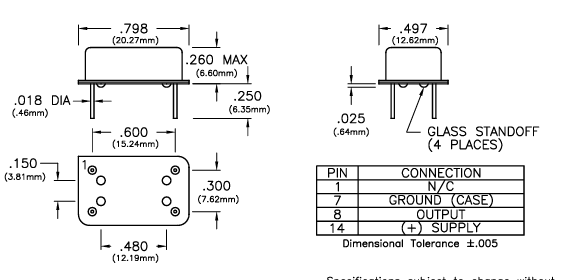

　　Connor-Winfield Corporation公司生產的14引腳DIP封裝HCMOS振蕩器HC13R5/HC14R5/HC15R5/HC16R5/HC17R5，頻率范圍1kHz–70MHz，輸出波形：HCMOS方波，采用全金屬氣密密封焊接封裝，尺寸20.27mm×7.62mm(長×寬)，引腳間距3.81mm。

HC13R5/HC14R5/HC15R5/HC16R5/HC17R5 14引腳DIP封裝HCMOS振蕩器Connor-Winfield

SPECIFICATIONSHC13R5HC14R5HC15R5HC16R5  HC17R5
Frequency Range1KHz to 70MHz
Frequency Stability±25ppm±50ppm±100ppm±100ppm±100ppm
(Inclusive of calibration tolerance at 25℃,operating temperoture range,
input voltage change,load change,aging,shock and vibration)
Temperature Range0 to +70℃0 to +70C0 to +70℃-40 to +85C·-55 to +125℃
WaveformHCMOS Squarewave
Load15pF
Voltage  Voh4.5V Minimum
Vol0.5V Maximum
Output Current  loh-4.0mA
lol4.0mA
Duty Cycle40/60 Maximum
Rise/Fall Time6nS
Start Up Time10mS Maximum
Supply Voltage+5Vdc ±5%
Supply Current30mA Maximum
PackageAll metal,hermetically sealed,welded package

型號參數信息：

Part NumberModel FamilyProduct TypePackageFrequency StabilityFrequency ToleranceSupply VoltageLogic FamilyFrequency RangeTemperature RangeKeywords
HC13R5OscillatorsClock14 Pin DIP+/-20ppm+/-25ppm5.0 VdcHCMOS1 KHz to 70 MHz0 to 70cLow Cost
HC13R5AOscillatorsClock14 Pin DIP+/-20ppm+/-25ppm3.3 VdcHCMOS1 KHz to 1 MHz0 to 70cN/A
HC13R6OscillatorsClock14 Pin DIP+/-20ppm+/-25ppm5.0 VdcHCMOS1 Hz to 1 KHz0 to 70cN/A
HC13R8OscillatorsClock14 Pin DIP+/-20ppm+/-25ppm5.0 VdcHCMOS1 to 80 MHz0 to 70cLow Cost
HC13R8GOscillatorsClock14 Pin DIP+/-20ppm+/-25ppm5.0 VdcHCMOS1 to 80 MHz0 to 70cN/A
RoHS
HC13R8ROscillatorsClock14 Pin DIP+/-20ppm+/-25ppm5.0 VdcHCMOS1 to 100 MHz0 to 70cLow Cost
HC145OscillatorsClock14 Pin DIP+/-5.0ppm+/-10ppm5.0 VdcHCMOS4 to 50 MHz-10 to 60cN/A
HC145ROscillatorsClock14 Pin DIP+/-10ppm+/-10ppm5.0 VdcHCMOS4 to 50 MHz-10 to 60cN/A
HC14R5OscillatorsClock14 Pin DIP+/-40ppm+/-50ppm5.0 VdcHCMOS1 KHz to 70 MHz0 to 70cN/A
HC14R5AOscillatorsClock14 Pin DIP+/-40ppm+/-50ppm3.3 VdcHCMOS1 KHz to 1 MHz0 to 70cN/A
HC14R6OscillatorsClock14 Pin DIP+/-40ppm+/-50ppm5.0 VdcHCMOS1 Hz to 1 KHz0 to 70cN/A
HC14R8OscillatorsClock14 Pin DIP+/-40ppm+/-50ppm5.0 VdcHCMOS1 to 80 MHz-25 to 75cLow Cost
HC14R8GOscillatorsClock14 Pin DIP+/-40ppm+/-50ppm5.0 VdcHCMOS1 to 80 MHz-25 to 75cN/A
RoHS
HC14R8ROscillatorsClock14 Pin DIP+/-40ppm+/-50ppm5.0 VdcHCMOS1 to 100 MHz0 to 70cLow Cost
HC15R5OscillatorsClock14 Pin DIP+/-100ppm+/-100ppm5.0 VdcHCMOS1 KHz to 70 MHz0 to 70cLow Cost
HC15R5AOscillatorsClock14 Pin DIP+/-100ppm+/-100ppm3.3 VdcHCMOS1 KHz to 1 MHz0 to 70cN/A
HC15R6OscillatorsClock14 Pin DIP+/-100ppm+/-100ppm5.0 VdcHCMOS1 Hz to 1 KHz0 to 70cN/A
HC15R8OscillatorsClock14 Pin DIP+/-100ppm+/-100ppm5.0 VdcHCMOS1 to 80 MHz0 to 70cLow Cost
HC15R8GOscillatorsClock14 Pin DIP+/-100ppm+/-100ppm5.0 VdcHCMOS1 to 80 MHz0 to 70cLow Cost
RoHS
HC15R8ROscillatorsClock14 Pin DIP+/-100ppm+/-100ppm5.0 VdcHCMOS1 to 100 MHz0 to 70cLow Cost
HC16R5OscillatorsClock14 Pin DIP+/-100ppm+/-100ppm5.0 VdcHCMOS1 KHz to 70 MHz-40 to 85cLow Cost
HC16R6OscillatorsClock14 Pin DIP+/-100ppm+/-100ppm5.0 VdcHCMOS1 Hz to 1 KHz-40 to 85cN/A
HC16R8OscillatorsClock14 Pin DIP+/-100ppm+/-100ppm5.0 VdcHCMOS1 to 80 MHz-40 to 85cLow Cost
HC16R8GOscillatorsClock14 Pin DIP+/-100ppm+/-100ppm5.0 VdcHCMOS1 to 80 MHz-40 to 85cN/A
RoHS
HC16R8ROscillatorsClock14 Pin DIP+/-100ppm+/-100ppm5.0 VdcHCMOS1 to 100 MHz-40 to 85cLow Cost
HC17R5OscillatorsClock14 Pin DIP+/-100ppm+/-100ppm5.0 VdcHCMOS1 KHz to 70 MHz-55 to 125cN/A
HC17R5ROscillatorsClock14 Pin DIP+/-100ppm+/-100ppm5.0 VdcHCMOS1 to 70 MHz-55 to 125cN/A
HC17R5RGOscillatorsClock14 Pin DIP+/-100ppm+/-100ppm5.0 VdcHCMOS1 to 70 MHz-55 to 125cN/A
RoHS
HC17R6OscillatorsClock14 Pin DIP+/-100ppm+/-100ppm5.0 VdcHCMOS1 Hz to 1 KHz-55 to 125cN/A
HC1xR8R SeriesOscillatorsClock14 Pin DIP+/-20ppm to +/-50ppm+/-25ppm to +/-100ppm5.0 VdcHCMOS1 to 100 MHz0 to 70cPure Spectrum
RoHS 5/6
JHC13R8ROscillatorsClockSM 14 Pin DIP+/-20ppm+/-25ppm5.0 VdcHCMOS1 to 70 MHz0 to 70cN/A
JHC14R8ROscillatorsClockSM 14 Pin DIP+/-40ppm+/-50ppm5.0 VdcHCMOS1 to 70 MHz0 to 70cN/A
JHC15R8ROscillatorsClockSM 14 Pin DIP+/-100ppm+/-100ppm5.0 VdcHCMOS1 to 70 MHz0 to 70cLow Cost
JHC15R8RCOscillatorsClockSM 14 Pin DIP+/-100ppm+/-100ppm5.0 VdcHCMOS1 to 70 MHz0 to 70cN/A
JHC16R8ROscillatorsClockSM 14 Pin DIP+/-100ppm+/-100ppm5.0 VdcHCMOS1 to 70 MHz-40 to 85cN/A

更多Connor-Winfield晶振產品可咨詢立維創展。
