6W PRV系列比例高壓電源

發布于:2024-07-04 15:22:33

品牌名稱:SDS High Voltage

重要參數:

功率:6W

輸入電壓:2.5 Vdc 至 15 Vdc

輸出電壓:0.16 至 1 kVdc、0.33 至 2 kVdc 和 0.66 至 4 kVdc

特點:小體積重量輕

工作溫度:-10°C to +70°C


  • 產品詳情

特點:

比例高壓電源:隔離輸出電壓與輸入電壓成正比

超小尺寸和輕量級

高效率

隔離高達 500 Vdc

邏輯 ON/OFF 輸入

參數:

ParametersSpecifications (at Tamb=25℃unless otherwise specified)
Input voltage Vin(pins 1&3)·2.5 to15Vdc(absolute maximum:30Vdc,see protection section for details)
·Reverse:-0.2Vdc max.
·Turn on voltage:2.5Vdc typical
Efficiency>75%at full load (input current in off state <4mA)
HV output Vout (pins 5,6&7)Output voltage is proportional to the input voltage
Output polarityCustomizable (see diagram below for details)
Nominal output current &
Residual ripple
VersionOutput voltageOutput cur-
rent
Ripple
(Fs~50kHz)
1K Series1 kV
(2x0.5kV or 2x1kV)
6  mA<1%
2k Series2 kV
(1x2kV or 2x1kV)
3.0 mA<1%
4K Series4 kV
(1x4kV or 2x2kV)
1.5 mA<1%
Switch frequency50 to 70kHz
Load voltage regulation+40%for full load to no load.(see diagram below)
Temperature coefficient<300ppm/℃
Operating temperature range-10℃ to+70℃(case)
Storage temperature range40°℃ to+125℃
HV power ON/OFF (pin 4)Connect Pin 4 to Vin return(pin3)to activate the HV output.
Compatible with open collector switches,relay..
Safeguards &Alarm(pin 2)·Over voltage at the input is detected above 15Vand themodule
automatically turns off
·Thermal detection automatically turns off the module above 70℃
·Alarm is a logical 5V output which turns high when Vin>15v or when
the thermal protection occurs.
The converter resumesnormal operation once the fault condition dis-
appears.
ShieldingThe metal case is internally grounded to the Vin Return pin 1
Pins0.63x0.63 mm square pins
Length:>2    mm
Weight<40g
InsulationFully potted in an ULcertified epoxy resin

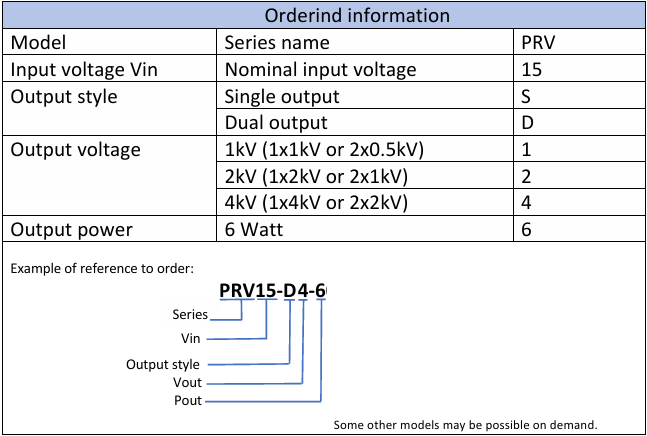

訂購指南:

PRV15-D4-6

PRV15-D1-6

PRV15-D2-6

PRV15-S1-6

PRV15-S2-6

PRV15-S4-6
